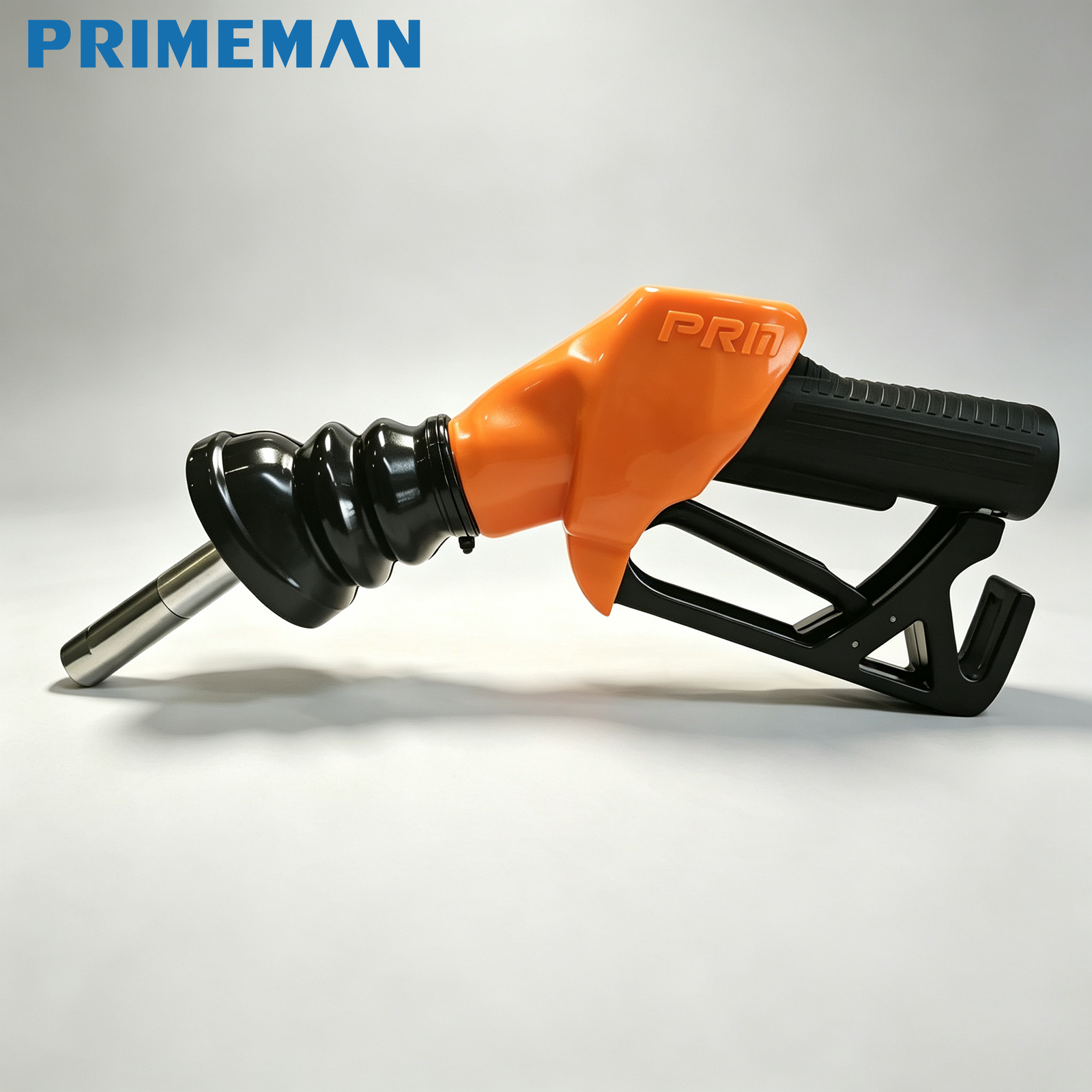

PRM Fourth Generation Vapor Recovery Fuel Nozzle
The PRM Fourth Generation Vapor Recovery Fuel Nozzle, model AGP-11D, is an automatic gasoline dispensing nozzle designed for petrol station vapor recovery systems. With a durable aluminum alloy body, 3/4 inch inlet and 38 L/min nominal flow rate, it helps fuel station operators achieve reliable dispensing and controlled vapor recovery. Buy directly from PRM, a China manufacturer focused on fuel dispenser and vapor recovery components.
Product Introduction
The Fourth Generation Vapor Recovery Fuel Nozzle combines fuel delivery and vapor recovery in one compact nozzle assembly. It is engineered for gasoline dispensing applications where vapor control, stable operation and daily serviceability matter.
Its proportional valve allows the gas-liquid ratio to be adjusted within 1.0-1.2:1 according to applicable operating requirements. When the automatic shut-off condition is reached, the nozzle seals rapidly within 0.5 seconds. The oil and vapor circuits are designed to shut off simultaneously, supporting a cleaner and more controlled refueling process.
The vapor recovery inlet is positioned away from the automatic shut-off sensing area. This layout helps reduce operating faults caused by fuel droplets or foam entering the vapor recovery passage during filling.
Product Parameters
|
Item |
Specification |
|
Brand |
PRM |
|
Main model |
AGP-11D |
|
Product type |
Fourth Generation Vapor Recovery Fuel Nozzle |
|
Application |
Petrol station fuel dispensers and vapor recovery systems |
|
Body material |
Aluminum alloy |
|
Inlet connection |
3/4 in |
|
Nominal flow rate |
38 L/min |
|
Shut-off type |
Automatic shut-off |
|
Self-sealing response |
Within 0.5 seconds under specified shut-off conditions |
|
Gas-liquid ratio |
Adjustable to 1.0-1.2:1 through proportional valve |
|
Circuit control |
Fuel and vapor circuits shut off simultaneously |
|
Custom support |
OEM and model-specific configuration available |
Key Features
Fast automatic shut-off
The Fourth Generation Vapor Recovery Fuel Nozzle is designed to self-seal quickly when the shut-off condition is reached, helping reduce overflow risk and improve refueling control.
Adjustable vapor recovery balance
An integrated proportional valve enables adjustment of the gas-liquid ratio from 1.0 to 1.2:1. This supports vapor recovery system matching and site-specific operating requirements.
Coordinated fuel and vapor shut-off
Fuel flow and vapor recovery are shut off at the same time. The coordinated action supports cleaner operation and helps avoid unnecessary vapor leakage after dispensing stops.
Separated vapor recovery port
The vapor recovery passage is positioned away from the self-sealing sensing area. This design helps prevent liquid droplets and foam from entering the vapor channel during fueling.
Aluminum alloy construction
The aluminum alloy body provides a practical balance of strength, handling comfort and corrosion resistance for frequent service station use.
Practical dispenser connection
With a 3/4 inch inlet and 38 L/min nominal flow rate, this vapor recovery nozzle is suitable for compatible gasoline dispenser configurations.
Applications

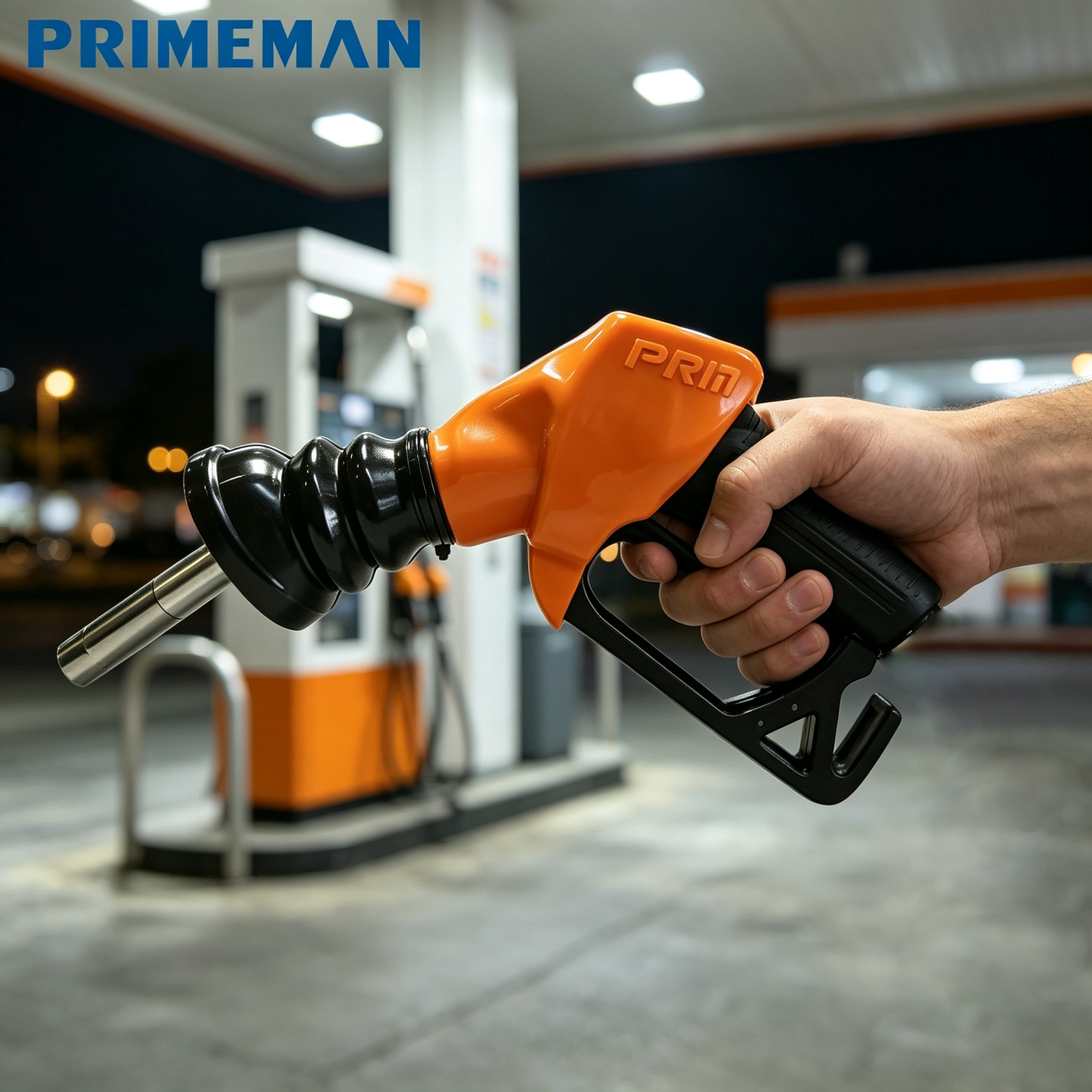

The PRM Fourth Generation Vapor Recovery Fuel Nozzle is suitable for:
Product Details
Automatic shut-off mechanism
The internal shut-off structure responds when the prescribed filling condition is met, helping operators maintain a consistent and safer fueling process.
Proportional valve assembly
The valve supports adjustment of vapor recovery performance and is a key component for gas-liquid ratio control.

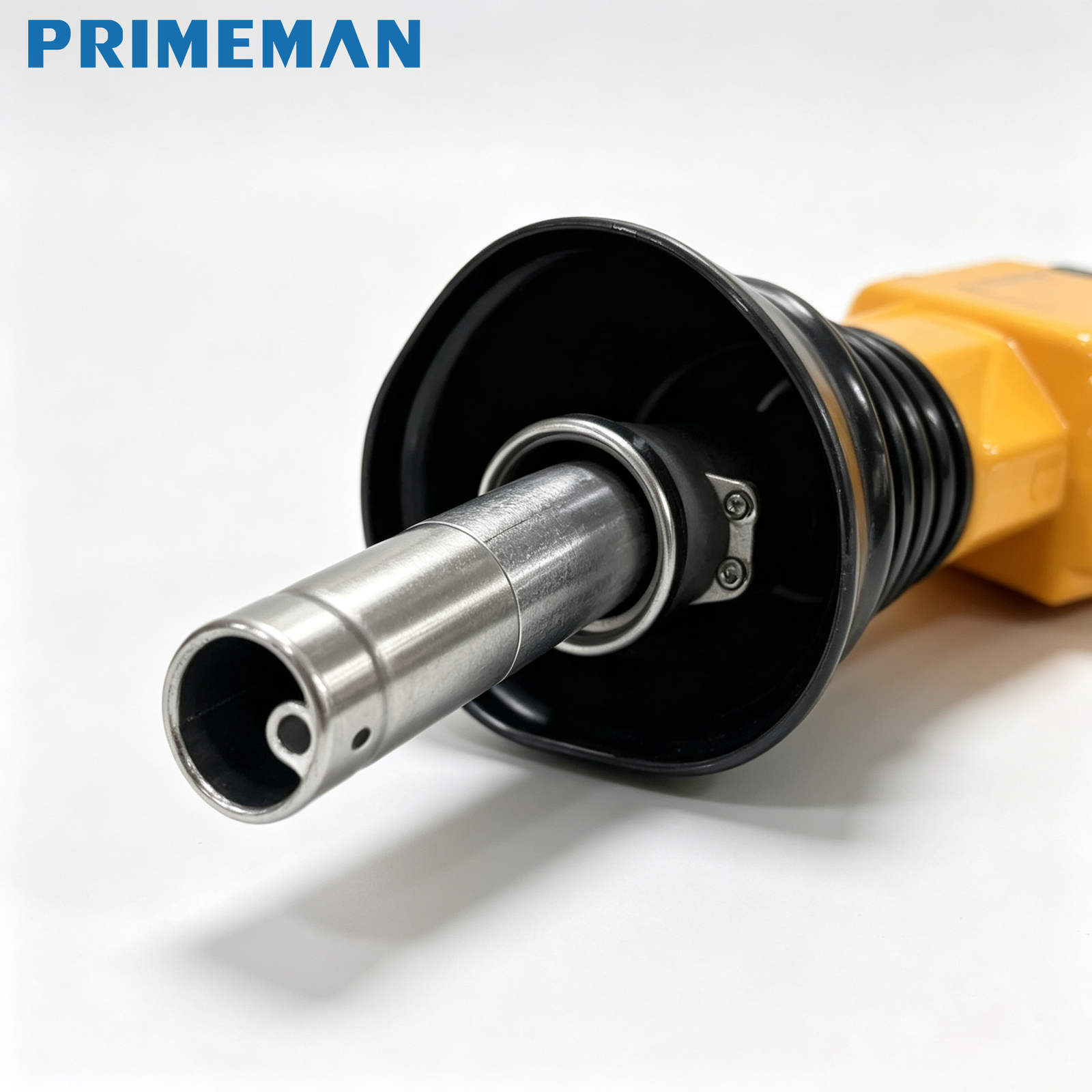

Vapor recovery channel
The separated vapor inlet layout is designed to reduce the influence of liquid droplets during fuel filling.

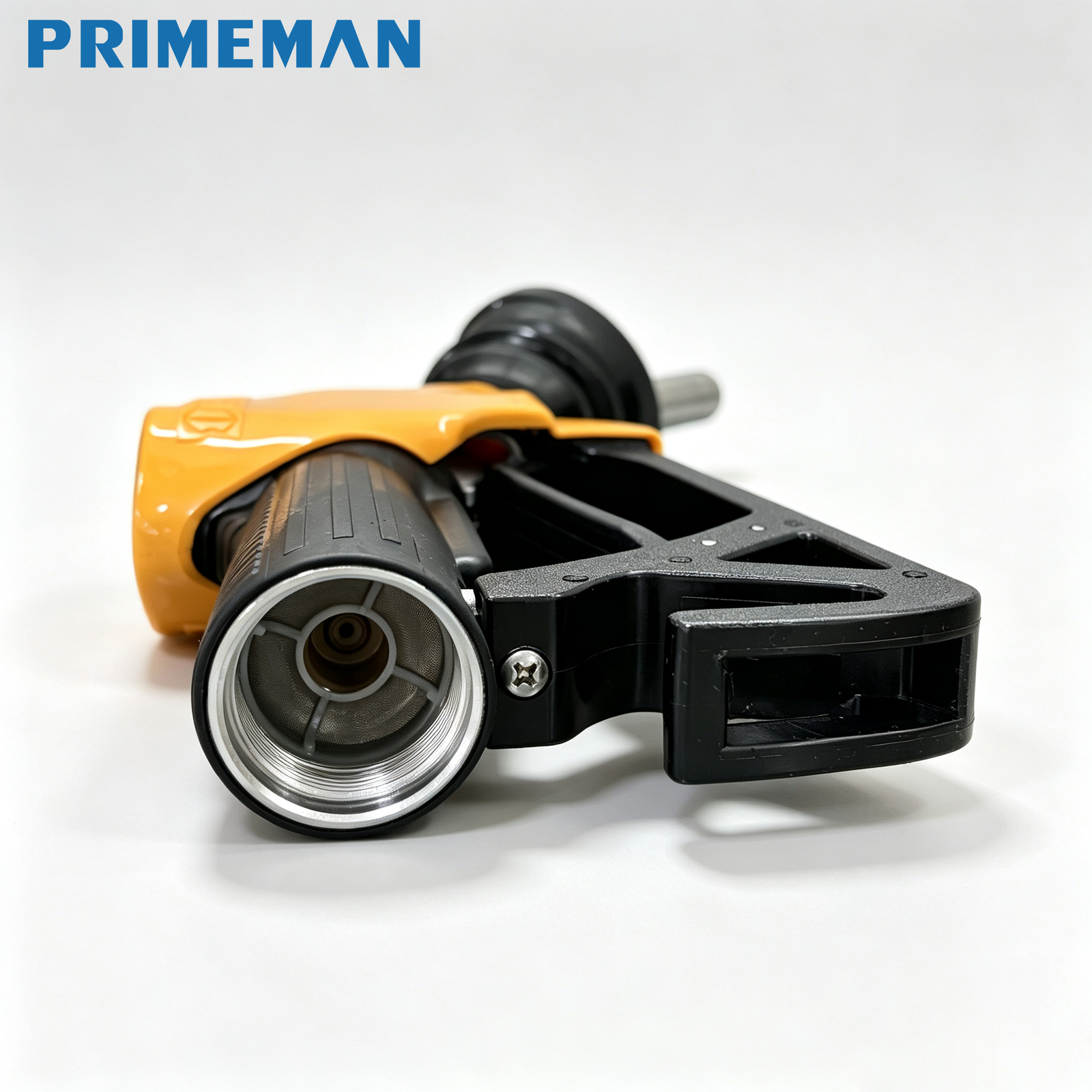

Fuel dispensing body
The nozzle body is built for regular forecourt handling and integration with compatible fuel hoses, breakaways and dispenser systems.
Use and Maintenance
Before refueling, inspect the nozzle, hose connection and seals for visible damage or leakage. Insert the nozzle securely into the vehicle filling neck before opening the handle. Do not force the nozzle against the filler neck or operate it with damaged parts.
After automatic shut-off, release the handle and allow residual fuel to drain into the filler neck before removing the nozzle. Keep the vapor recovery opening clean and free from dirt or hardened fuel residue. Use only with approved gasoline dispensing systems, and confirm fuel compatibility before using the nozzle with alternative fuels or special blends.
Quality and Supply Support
PRM supplies vapor recovery nozzles and related fuel dispenser components for international customers. Model-specific inspection records, technical drawings, packaging requirements and OEM identification can be confirmed before order placement. Request the final technical data sheet when matching the nozzle to an existing dispenser, hose or vapor recovery system.
FAQ
Can this nozzle be installed on an existing fuel dispenser?
Compatibility depends on the inlet size, hose assembly, vapor recovery system and dispenser configuration. Confirm these details with PRM before ordering.
What is the gas-liquid ratio?
The proportional valve allows adjustment to 1.0-1.2:1, subject to the operating requirement of the installed system.
Is this nozzle intended for gasoline?
It is designed for gasoline vapor recovery applications. Confirm compatibility before use with methanol blends, alternative fuels or other liquids.
Can PRM provide OEM service?
Yes. OEM labeling and model-specific supply requirements can be discussed before production.
What should be confirmed before purchase?
Confirm the exact model, inlet thread, flow requirement, fuel type, vapor recovery system connection, required certificates and packaging quantity.
