Description

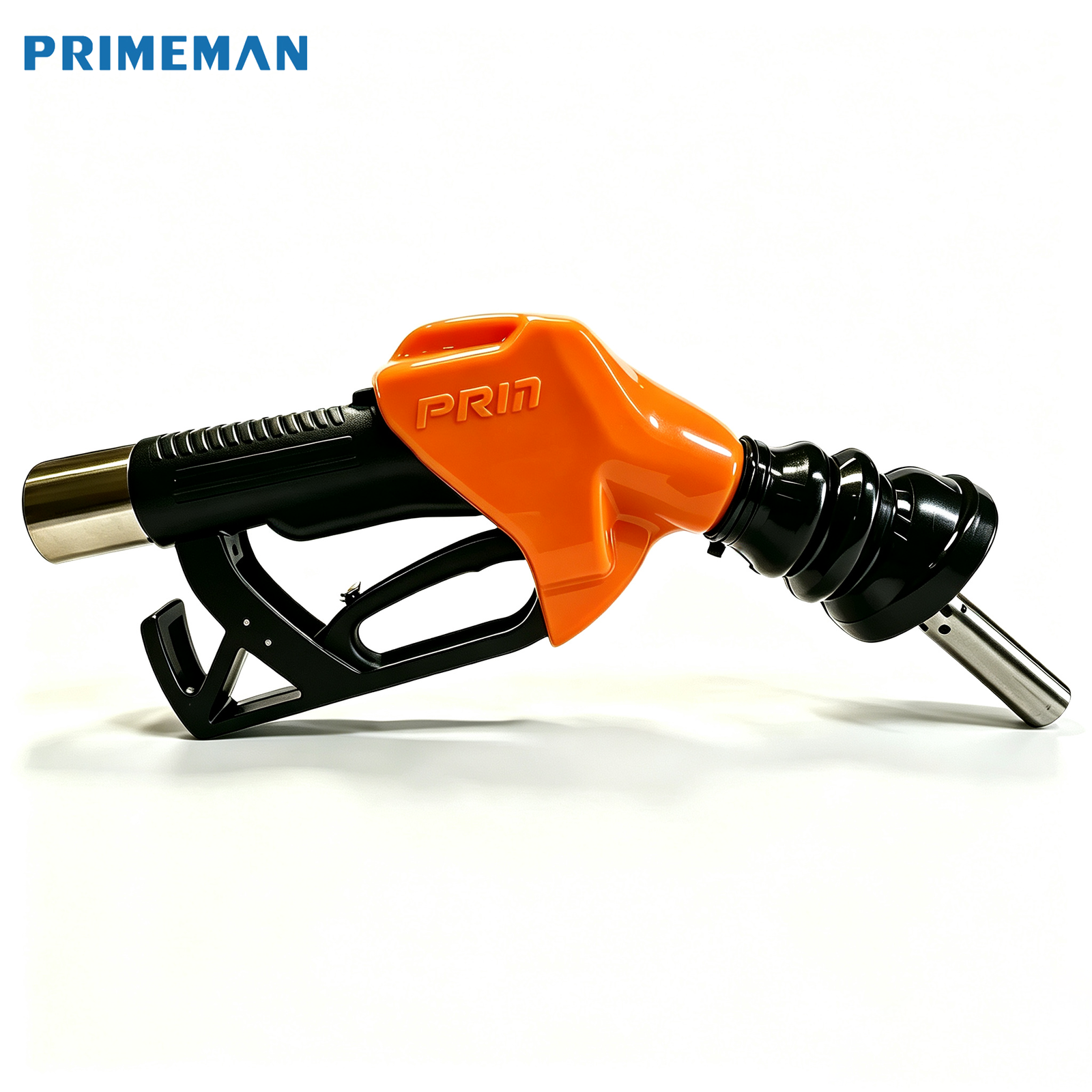

PRM AGP-11D Vapor Recovery Fuel Nozzle

The PRM AGP-11D Vapor Recovery Fuel Nozzle is an automatic gasoline dispensing nozzle designed for compatible petrol station and mobile fuel dispenser vapor recovery systems. It combines a 3/4 inch connection, durable aluminum alloy body and 38 L/min flow rate in a practical solution for controlled gasoline refueling.

As a manufacturer of vapor recovery equipment and fuel dispenser components, PRM supplies the AGP-11D Vapor Recovery Fuel Nozzle for equipment manufacturers, service station projects, distributors and replacement programs.

Product Introduction

The AGP-11D Vapor Recovery Fuel Nozzle is designed to deliver gasoline while collecting displaced fuel vapor through the connected vapor recovery system. It supports cleaner refueling operation and helps station operators integrate vapor recovery functions into compatible fuel dispensers.

Its aluminum alloy body is intended for frequent forecourt handling, while the automatic shut-off mechanism helps control fuel delivery during filling. The 38 L/min flow rate makes this model suitable for dispensing applications that require stable fueling performance and vapor recovery capability.

The nozzle is designed with coordinated fuel and vapor control. When the automatic shut-off condition is reached, the fuel and vapor circuits close together to help reduce unnecessary vapor release after dispensing.

Product Parameters

Key Features

Automatic vapor recovery
The AGP-11D Vapor Recovery Fuel Nozzle combines gasoline dispensing and vapor collection in one assembly, supporting compatible Stage II vapor recovery systems.

38 L/min dispensing performance
A nominal 38 L/min flow rate provides a practical balance between refueling efficiency and vapor recovery system control.

Aluminum alloy construction
The aluminum alloy body is durable, lightweight and suitable for regular handling at petrol stations and fuel dispenser installations.

Fast automatic shut-off
When the shut-off condition is reached, the nozzle is designed to self-seal within 0.5 seconds, helping operators maintain a controlled fueling process.

Adjustable gas-liquid ratio
The proportional valve supports adjustment of the gas-liquid ratio within 1.0-1.2:1, according to the operating requirements of the installed vapor recovery system.

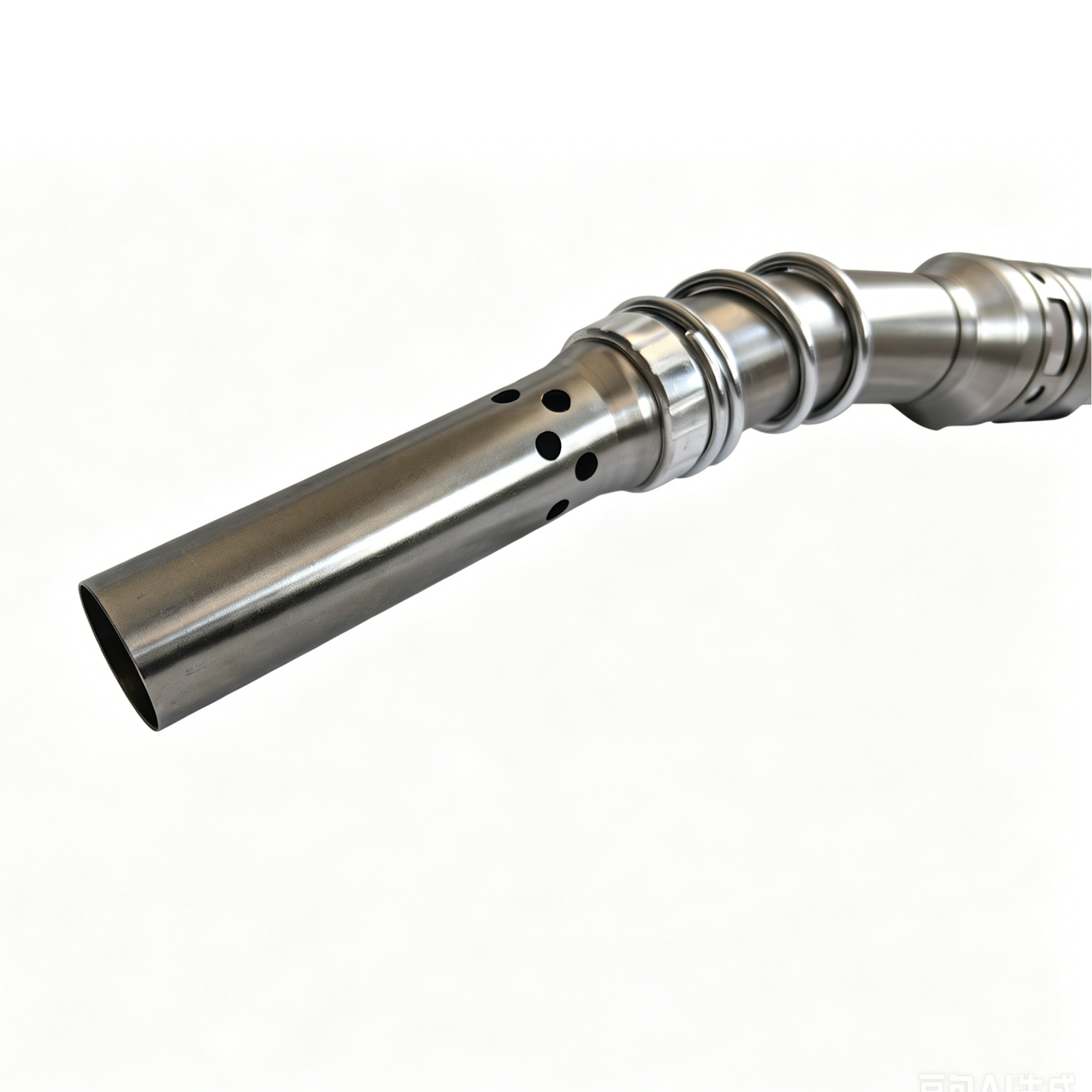

Separated vapor recovery port design
The vapor recovery opening is positioned away from the self-sealing sensing area. This helps reduce the risk of liquid droplets or foam entering the vapor recovery passage during refueling.

Applications

The PRM AGP-11D Vapor Recovery Fuel Nozzle is suitable for:

Product Details

Nozzle body
The compact aluminum alloy body is designed for daily fueling work and connection to compatible dispenser hose assemblies.

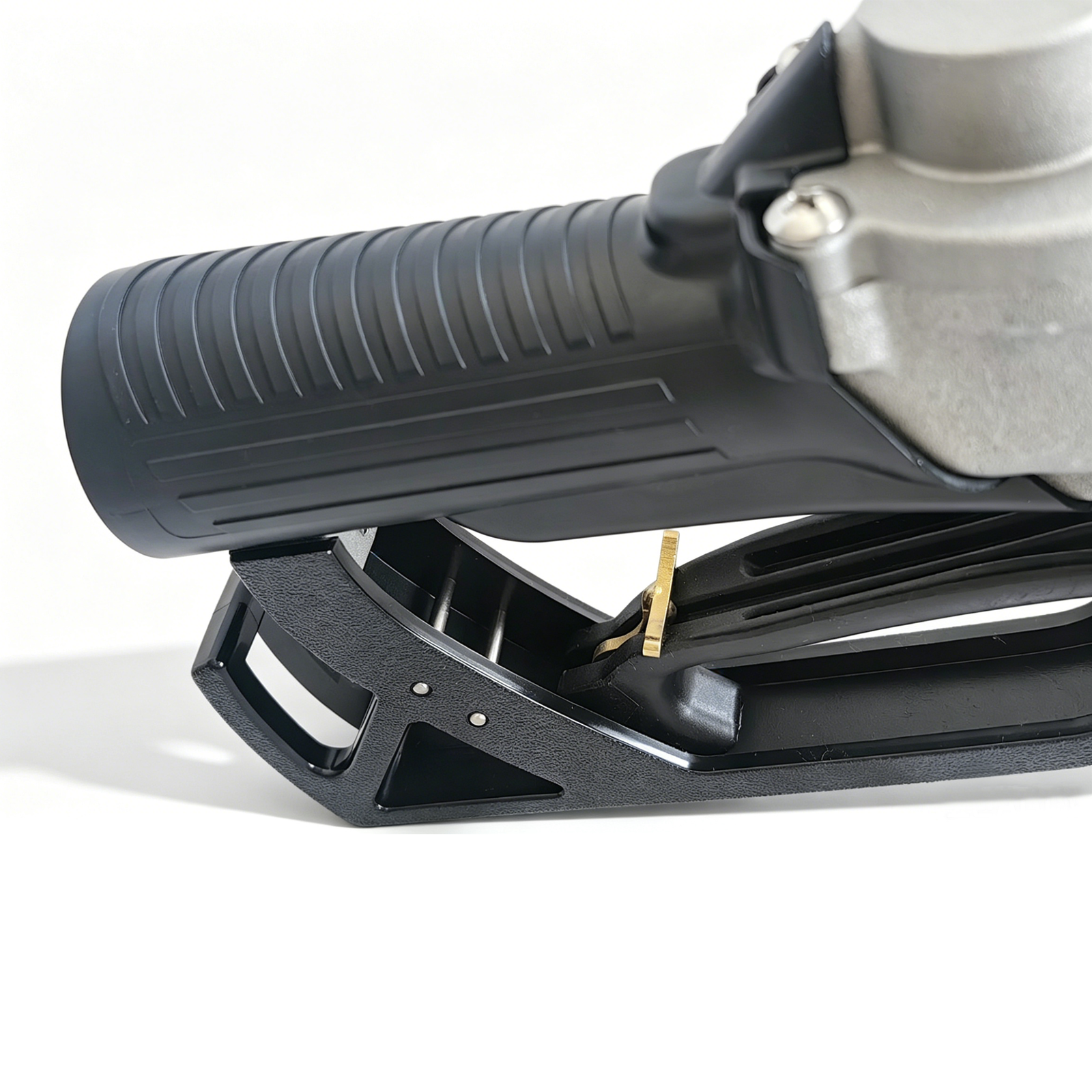

Automatic shut-off mechanism
The automatic mechanism responds when the defined filling condition is reached, helping prevent continued dispensing after shut-off.

Proportional valve system
The valve allows adjustment of vapor recovery performance to match the gas-liquid ratio requirements of the installed system.

Fuel and vapor circuit control
Fuel delivery and vapor recovery are controlled together, helping provide a more stable and coordinated refueling operation.

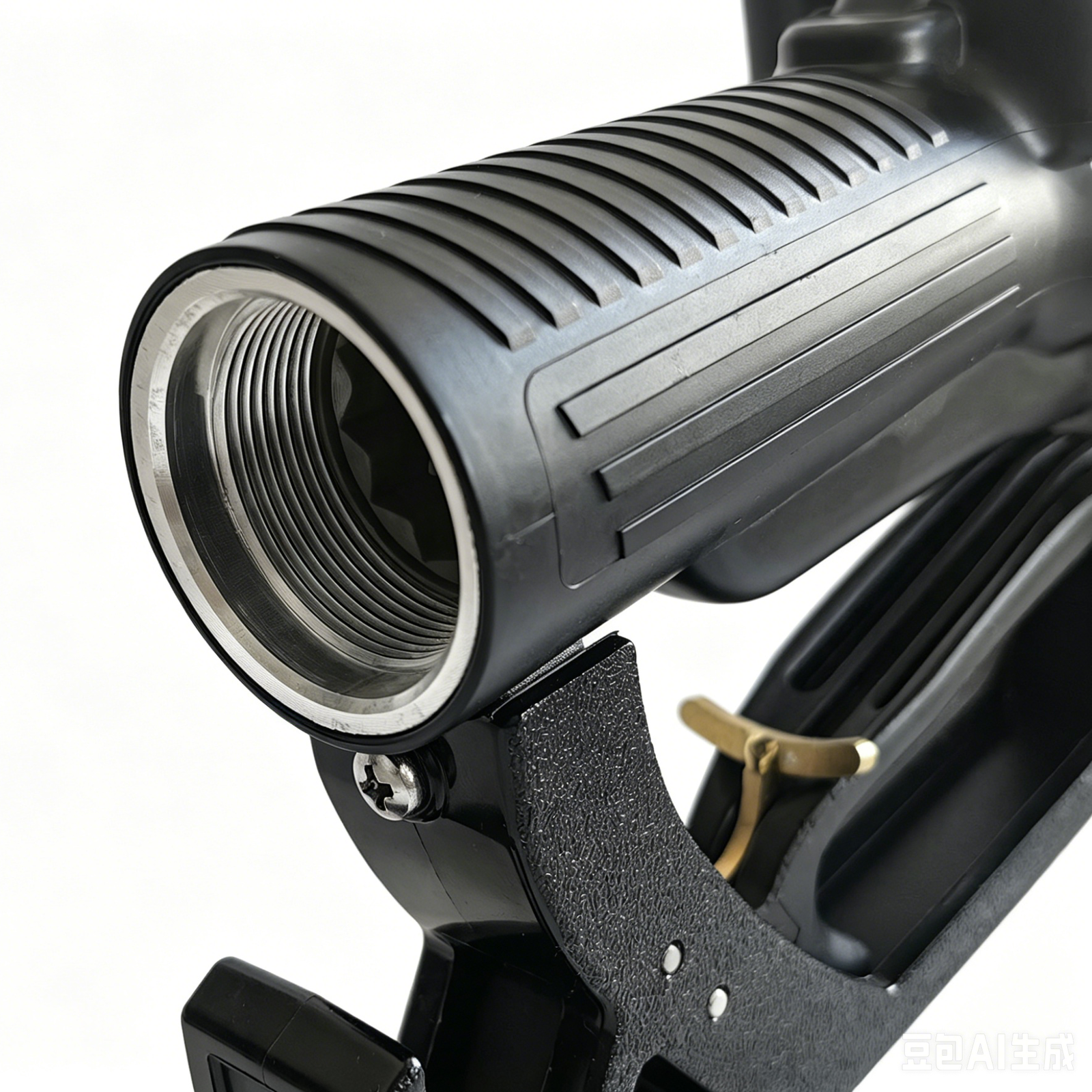

3/4 inch inlet connection
The nozzle is supplied with a 3/4 inch inlet configuration. Confirm thread standard, hose size and mating components before placing an order.

Use and Maintenance

Inspect the nozzle body, hose connection, seals and vapor recovery passage before use. Do not operate a nozzle with visible leakage, damaged parts or loose connections.

Insert the nozzle securely into the vehicle filler neck before pulling the handle. After automatic shut-off, release the handle and allow residual fuel to drain into the filler neck before removal. Keep the vapor recovery opening clean to prevent dirt, hardened fuel residue or other blockage.

Use the AGP-11D only with approved gasoline dispensing and vapor recovery systems. Confirm fuel compatibility before use with alcohol blends, methanol, special gasoline blends or other liquids.

Quality and Supply Support

PRM can provide product configuration confirmation, OEM identification, packaging requirements and technical support for bulk orders. For replacement projects, provide photos or drawings of the existing nozzle, hose, breakaway, dispenser and vapor recovery connection before procurement.

Standard export packaging and order-specific protection can be confirmed according to shipping method and destination. Request the final product drawing, inspection requirement and certificate documents before production.

FAQ

Is the AGP-11D suitable for every fuel dispenser?
No. Compatibility depends on the inlet thread, hose assembly, dispenser configuration and vapor recovery system. Confirm these details before ordering.

Can the nozzle be used for mobile fuel dispensers?
Yes, it can be supplied for compatible mobile fuel dispenser applications. System matching and local compliance requirements must be verified.

What is the flow rate?
The AGP-11D has a nominal flow rate of 38 L/min.

Can the gas-liquid ratio be adjusted?
Yes. The proportional valve supports adjustment within 1.0-1.2:1 for compatible vapor recovery systems.

Can PRM provide OEM service?
Yes. OEM branding, product identification, packaging and project-specific requirements can be discussed before order confirmation.
